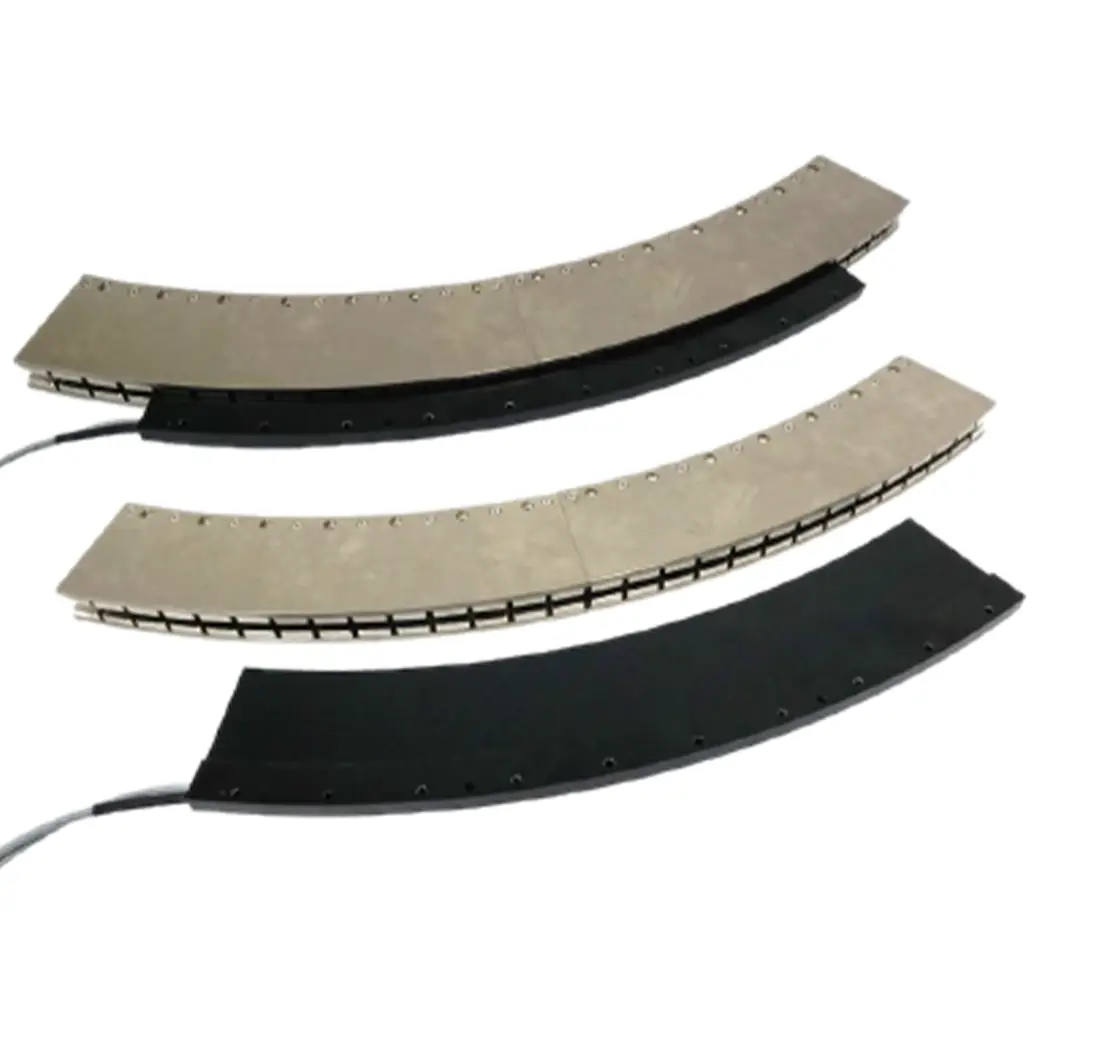

ACR Series Ironless Motor

Model: acr-series Product Category:

Arc-type frameless motors with high-performance permanent magnet delivering high torque in a low-profile, lightweight design.

The ACR Series arc-type frameless motors incorporate a high-performance permanent magnet to deliver high torque in a low-profile, lightweight design. Their thin, curved shape with large center hole allows for arrangement in a limited angle or for 360-degree operation.

  • Ironless technology for zero cogging effect
  • Thin size and lightweight with a large center hole
  • Integrated Hall sensor
  • Motor coils include a temperature sensor
  • Limited-angle or 360-degree operation
  • Direct drive technology exhibits high torque
  • Multi-coil and multi-track configurations
Applications and Industries

High speed and precision machines for positioning, motion profile tracking, velocity controlling used in front-end and back-end wafer handling and inspection, photovoltaic and lithium battery systems, glass and LCD applications, biomedical equipment, printing machines, and laser processing machines.

Download product sheet

Weight 2 lbs
