Part: EDS-4008-2MSC-LV-T Category: Manufacturer:

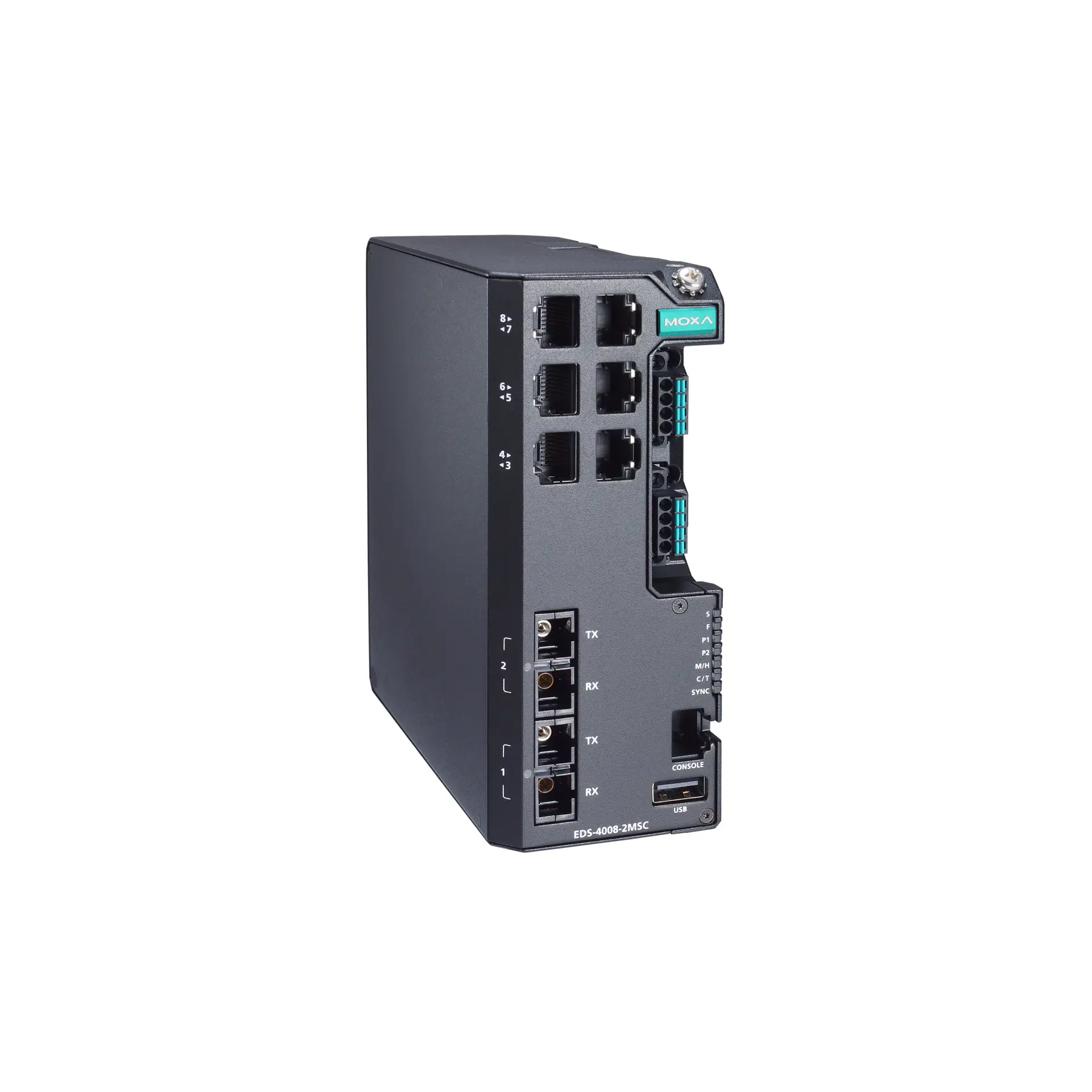

EDS-4008-2MSC-LV-T

Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature

$1,501.00

Description

Features and Benefits

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)[1], and RSTP/STP for network redundancy
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management

The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4008 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Additional information

Weight 2.5 lbs
Dimensions 2.2 × 5.51 × 4.72 in
Download Datasheet (PDF)
