Part: V3210-TL7-8L-CT-T Category: Manufacturer:

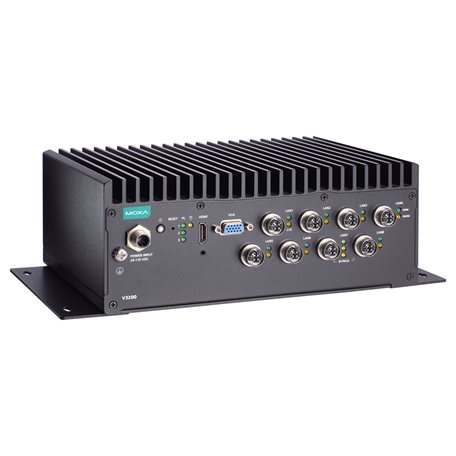

V3210-TL7-8L-CT-T

x86 computer with IntelR 11th Gen Core i7-1185G7E 1.8 GHz processor, 1 HDMI port, 1 VGA port, 8 GbE ports, 2 COM ports, 2 DIs, 2 DOs, dual 2.5-inch SSD slots, 1 mPCIe slot, 2 M.2 B key slots, 1 M.2 E key slot, 2 USB ports, DDR4 16GB and M.2 M key 128GB storage and TPM pre-installed. 24 to 110 VDC power input with isolation, -40 to 70°C operating temperature

$7,140.00

Description

Features:

  • Intel® Celeron®/Intel® Core™ i3/i5/i7 embedded computer for in-vehicle applications
  • Multiple interfaces: Up to 8 GbE, 2 serial, 2 USB, 2 DIs, 2 DOs, 1 mPCIe slot for wireless (Wi-Fi 5 or 4G), and 1 M.2 E key for wireless (Wi-Fi 6)
  • Supports dual independent displays (VGA and HDMI with 4K resolution)
  • Native TSN support (for models with i7-1185GRE processor)
  • Onboard TPM module for enhanced cybersecurity
  • Complies with all EN 50155 mandatory test items
  • EN 50121-4 compliant
  • IEC 61373 certified for shock and vibration resistance
  • Multiple OSes including Moxa Industrial Linux with 10-year long-term support



The V3200 Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 64 GB RAM, one M.2 2280 M key slot, and two 2.5″ SSD slots for storage expansion. The computers are compliant with EN 50155 and EN 50121-4 standards covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for railway onboard and wayside applications.

For connecting with onboard and wayside systems and devices, the V3200 computers are equipped with a rich set of interfaces including 4 Gigabit Ethernet ports (default; can go up to 8 ports) with one-pair LAN bypass function to ensure uninterrupted data transmission, 2 RS-232/422/485 serial ports, 2 DIs, 2 DOs, and 2 USB 3.0 ports. The built-in TPM 2.0 module ensures platform integrity and provides hardware-based security as well as protection from tampering.

Vehicular applications require reliable connectivity. They also require clear indicators on the device that identify the status of the software. The V3200 computers come with one LTE and 6 SIM-card slots to help establish redundant LTE/Wi-Fi connections and three programmable LEDs that enable monitoring of the runtime status of software.

Additional information

Weight 11.5 lbs
Dimensions 7.09 × 3.8 × 9.84 in
Download Datasheet (PDF)
