V2406C-KL1-CT-T

Description

Features and Benefits

• Intel Celeron/Intel Core i3/i5/i7 high performance network video recorder for rolling stock applications
• DDR4 memory slot; up to 32 GB capacity
• Supports dual independent displays (VGA and HDMI with 4K resolution)
• 2 Gigabit Ethernet ports with M12 X-coded connectors
• M12 A-coded power connector
• Complies with all EN 50155 mandatory test items
• Compliant with EN 50121-4
• IEC 61373 certified for shock and vibration resistance
• -40 to 70°C wide-temperature models available

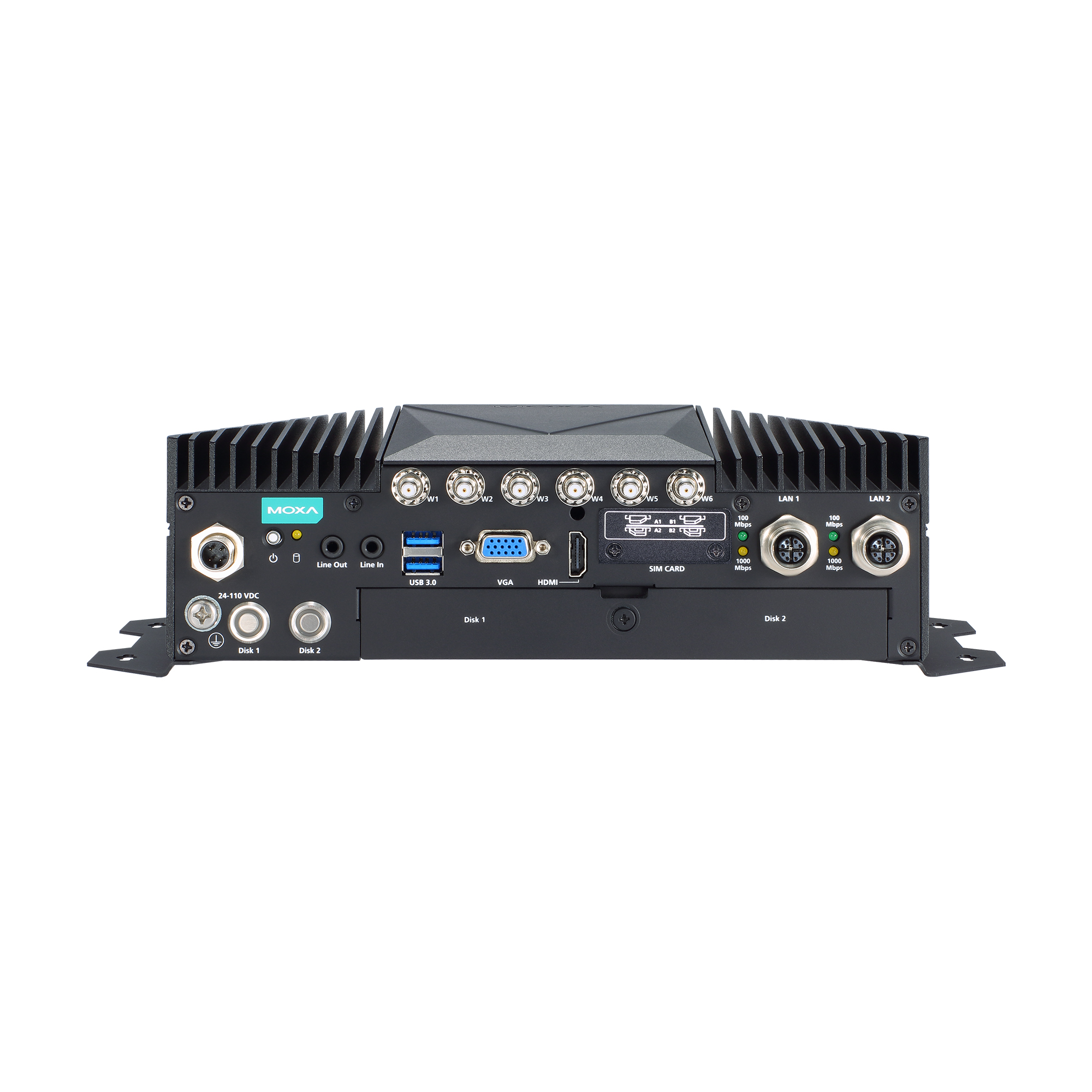

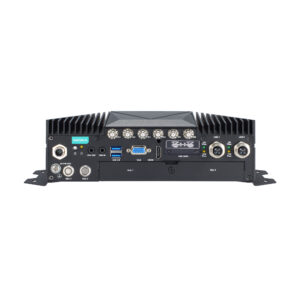

The V2406C Series embedded computers are built around an Intel Core i7/i5/i3 or Intel Celeron high-performance processor and come with up to 32 GB RAM, one mSATAs lot, and two hot-swappable HDD/SSD for storage expansion. The computers are compliant with EN 50155:2017 and EN 50121-4 standards covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for railway onboard and wayside applications.For connecting with onboard and wayside systems and devices, V2406C computers are equipped with a rich set of interfaces including 2 Gigabit Ethernet ports, 4 RS-232/422/485 serial ports, 6 DIs, 2 DOs, and 4 USB 3.0 ports. In addition, the V2406C computers provide 1 VGA video output and 1 HDMI output with 4K resolution support.For reliable connectivity in train-to-ground (T2G) applications, the computers are provided with 2 mPCIe wireless expansion slots and 4 SIM-card slots. These help establish redundant LTE/Wi-Fi connectivity, ensuring solid bidirectional communications between a fast-moving train and the wayside applications. In addition, the preinstalled QMA cable for wireless modules can help reduce assembly efforts and ensure low RF leakage.
