Part: V1202-CT-T Category: Manufacturer:

V1202-CT-T

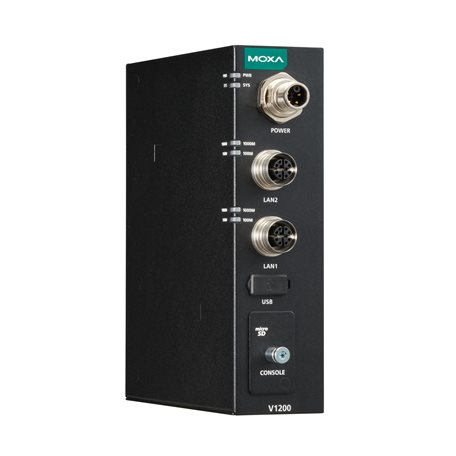

Arm-based compact rail computer with 2 GbE ports, 1 USB port, 1 microSD slot, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating

$964.00

Description

Features:

  • Arm Cortex-A53 quad-core 1.6 GHz processor
  • Slim, compact design with multiple mounting options
  • Integrated 5G Sub-6GHz NR module and Wi-Fi 6 module with dual SIM
  • Built-in TPM 2.0 module
  • Moxa Industrial Linux built-in for long-term Linux support
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items
  • Compliance with IEC 62443-4-2 Security Level 2 requirements

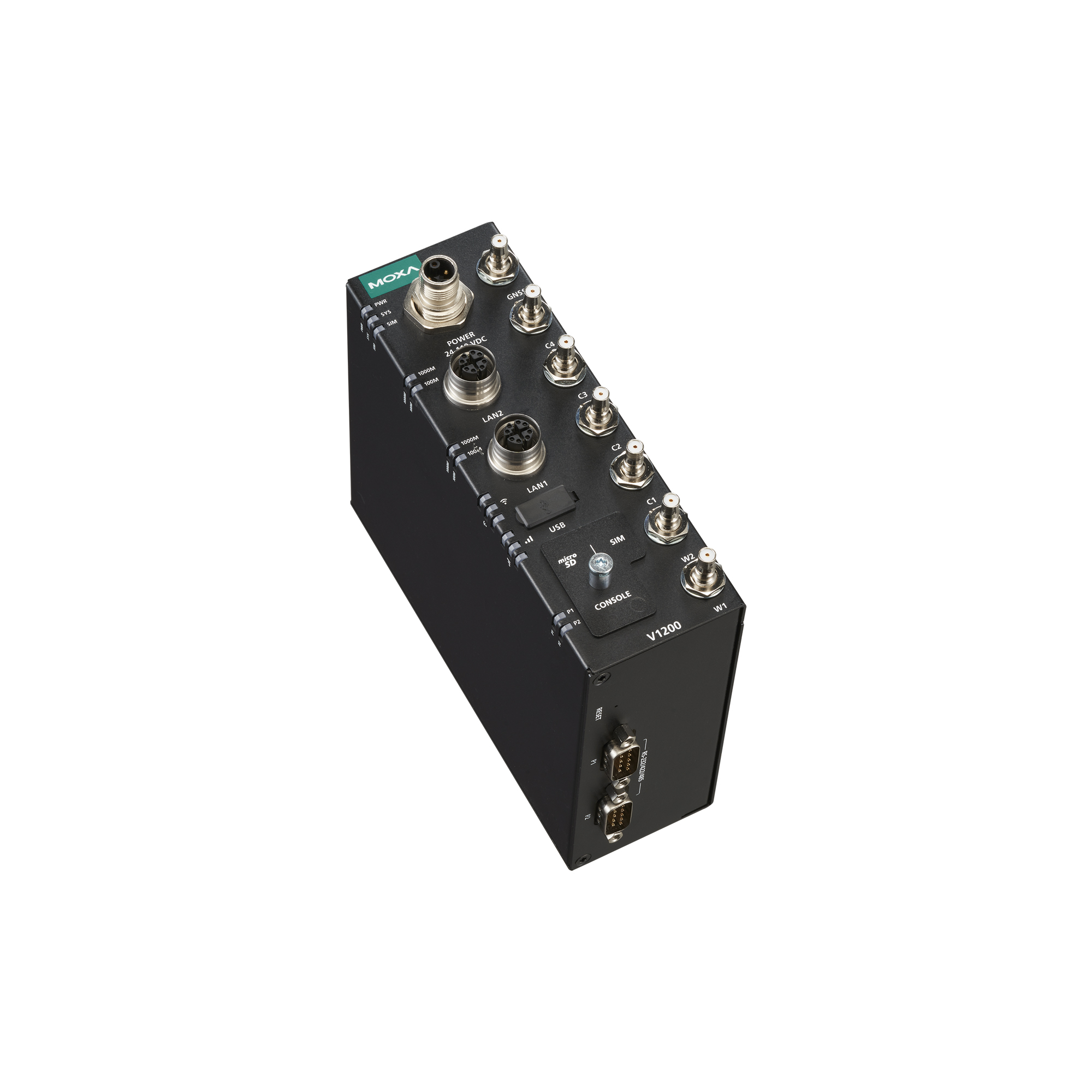

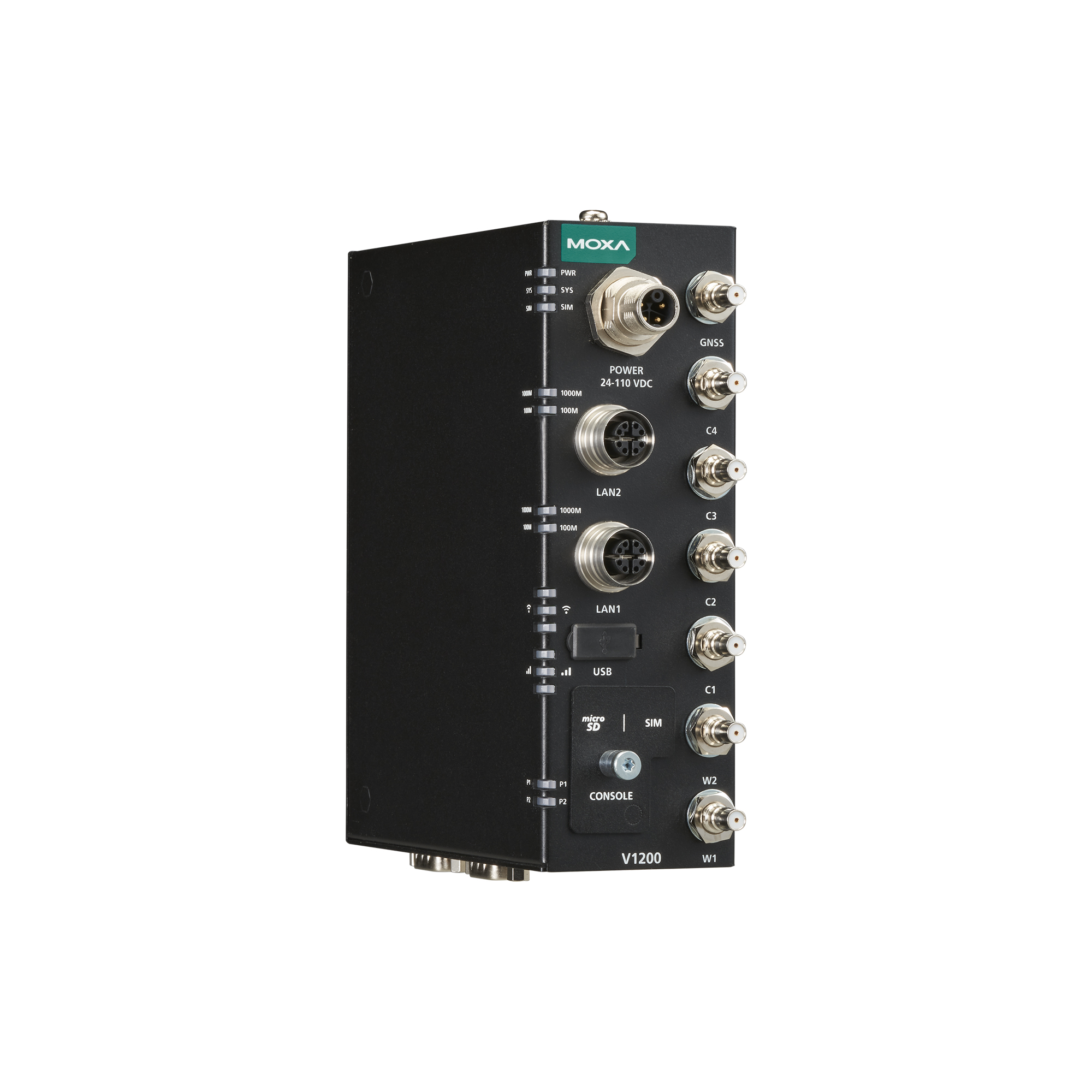

The V1200 computing platform is designed for railway TCMS data-acquisition and train-to-ground applications. The computer comes with dual M12 10/100/1000 Mbps Ethernet ports, built-in 5G and Wi-Fi 6 modules and dual RS-232/422/485 serial ports. The slim, compact design with multiple mounting options reduces installation space and provides flexibility for mounting in various cabinets or onboard locations.

The V1200 comes with Moxa Industrial Linux (MIL) and long-term Linux support and vulnerability patching. A web-based interface is provided for easy configuration of Ethernet and wireless network settings without the need for programming.

The V1200 wireless-enabled models are thoroughly tested in a testing chamber, guaranteeing they meet the EN 50155 mandatory requirements and OT4 operating temperature (-40 to 70°C with cellular and Wi- Fi modules enabled) requirements, making them suitable for wide-temperature applications

Additional information

Weight 11.5 lbs
Dimensions 7.09 × 3.8 × 9.84 in
