Part: NPort 5100A Series Category: Manufacturer:

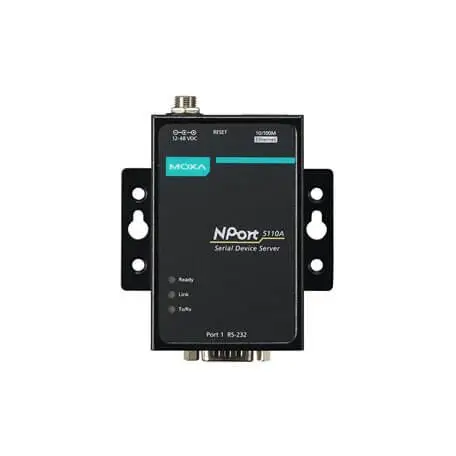

NPort 5100A Series

1-port RS-232/422/485 serial device servers

From $150.50

Models:
$161.04
1 port device server, 10/100M Ethernet, RS-232, DB9 male, 0.5KV serial surge, 12~48VDC, 0~60°C
$220.69
1 port device server, 10/100M Ethernet, RS-232, DB9 male, 0.5KV serial surge, 12~48VDC, -40~75°C
$165.58
1 port device server, 10/100M Ethernet, RS-422/485, DB9 male, 0.5KV serial surge, 12~48VDC, 0~60°C
$220.69
1 port device server, 10/100M Ethernet, RS-422/485, DB9 male, 0.5KV serial surge, 12~48VDC, -40~75°C
$189.39
1 port device server, 10/100M Ethernet, RS-232/422/485, DB9 male, 0.5KV serial surge, 12~48VDC, 0~60°C
$244.50
1 port device server, 10/100M Ethernet, RS-232/422/485, DB9 male, 0.5KV serial surge, 12~48VDC, -40~75°C

Description

Moxa’s NPort 5100A Series serial device servers has 1-port RS-232/422/485 with serial surge protection. The Nport 5100A device servers make serial devices network-ready in an instant and give PC software direct access to serial devices from anywhere on the network. The NPort 5100A is ruggedized,which means it can withstand the toughest, harshest industrial conditions. It is ultra-lean and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
With Moxa’s MiiNe, an embedded drop-in serial device server module, the NPort 5110A Series offers less than 1 W power consumption, saving at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments. Moxa Nport 5100A series also offer surge Protection for Serial, Ethernet, and Power;

  • 3-Step Web-based Configuration; and easy troubleshooting.
  • Power consumption of only 1 W
  • Fast 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power
  • COM port grouping and UDP multicast applications
  • Screw-type power connectors for secure installation
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile TCP and UDP operation modes
  • Connects up to 8 TCP hosts

Additional information

Dimensions 2.05 × 3.15 × 0.87 in
Download Datasheet (PDF)
