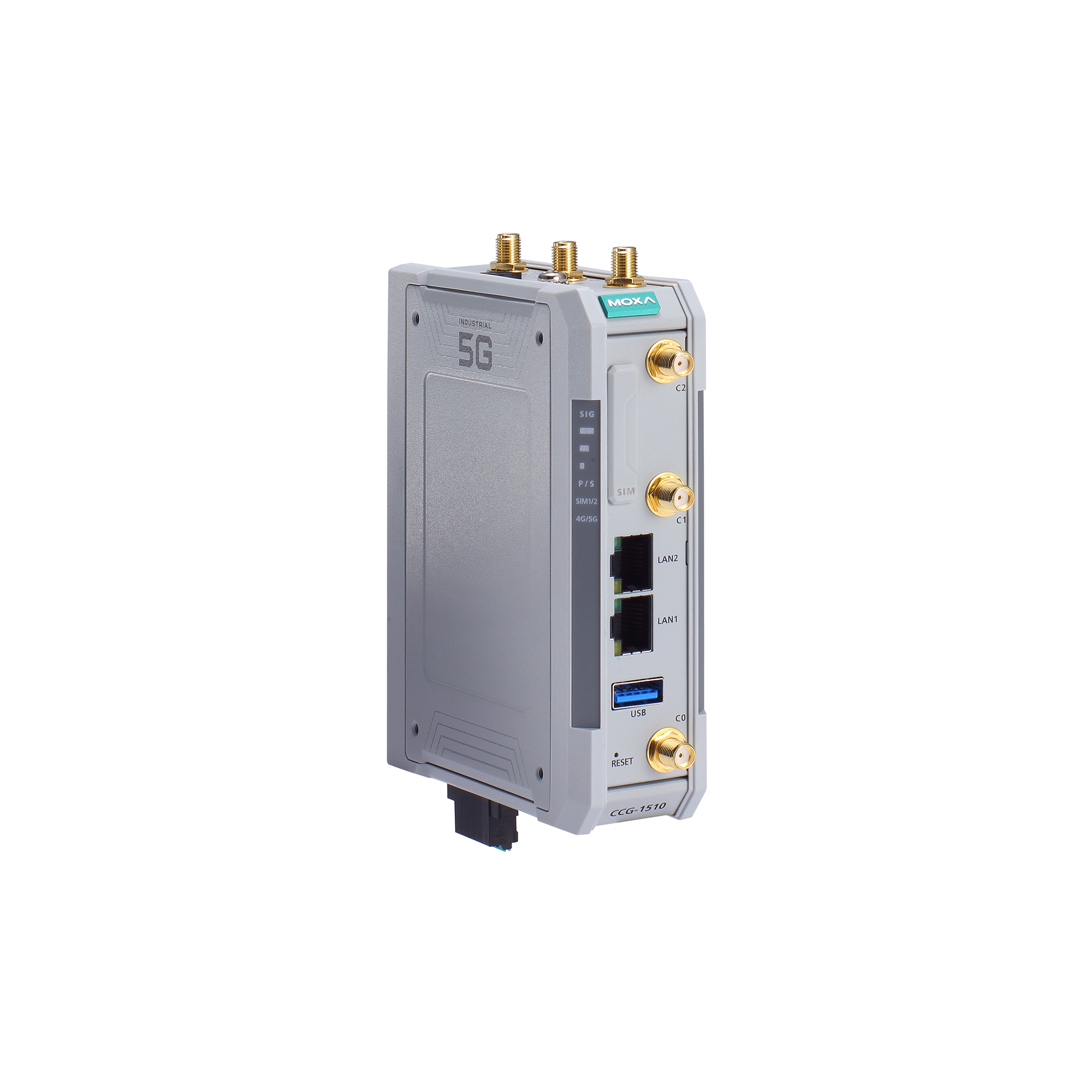

CCG-1510-US-T

• Qualcomm® Snapdragon™ X55
• 5G-ready media converter with industrial-grade FCC/UL/NCC/JET/Telec certifications
• Dual SIM slots
• 2 auto-sensing 10/100/1000 Mbps Ethernet ports
• 1 RS-232/422/485 serial port
• LEDs for easy installation and maintenance
• -40 to 70°C wide-temperature design

The CCG-1500 Series is designed both as a media converter and a protocol converter. The media converter includes 5G-to-ethernet and 5G-to-serial ports, which can be used for private networks. The protocol converter is mainly for Modbus TCP/RTU conversion. The 5G interface can use Modbus TCP while the serial interface can process Modbus RTU.

The CCG-1500 is built around a Qualcomm® Snapdragon™ X55 Cortex-A7 processor that has been optimized for use in media-conversion scenarios, and is also widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny, embedded converter is a reliable and secure gateway for data processing at field sites as well as a useful communications platform for large-scale deployments.

Wide temperature 5G-enabled models are available for extended temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the 5G-enabled computing platforms are suitable for wide-temperature applications.
