Part: CA-114-T Category: Manufacturer:

CA-114-T

4 Port PC/104 Board, RS-232/422/485

$292.11

Description

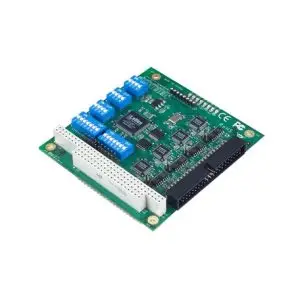

The CA-114 PC/104 modules are reliable, high performance, multiport serial communication solutions that have 4 RS-232/422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CA-114’s versatile driver support makes the modules suitable for a wide range of applications.

  • 921.6 kbps maximum baudrate for super fast data transmission
  • On-chip H/W and S/W flow control
  • IRQ settings, I/O settings, and serial interface are jumper and DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Windows CE 5.0/6.0 and Windows XP embedded operating systems supported
  • Wide temperature model available for -40 to 85°C environments

Additional information

Weight 1.5 lbs
Download Datasheet (PDF)
