Model: CA-104-T Product Category:

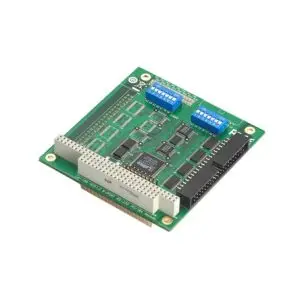

CA-104-T

4 Port PC/104 Board, RS-232, Wide Temperature

$135.00

PC/104 bus, 4-port RS-232 module, -40 to 85°C operating temperature

The CA-104 PC/104 modules are reliable, high performance, multiport serial communication solutions that have 4 RS-232 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CA-104 has a versatile driver support that makes the modules suitable for a wide range of applications.

  • 921.6 kbps maximum baudrate for super fast data transmission
  • On-chip software flow control
  • Built-in 15 kV ESD protection
  • IRQ and I/O settings are jumper and DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Windows CE 5.0/6.0 and Windows XP embedded operating systems supported
  • Wide temperature model available for -40 to 85°C environments
Weight 1.5 lbs
