Deliver Your I/O Data
to the Cloud,
Quickly &
Securily

ioThinx 4510 Series Advanced Modular Remote I/O

Power InputsSystem Power: 12 to 48 VDC; Field Power: 12/24 VDC
Expansion Modules32
IT ProtocolsSNMPv1/v2c/v3, RESTful API, MQTT
OT ProtocolsModbus/TCP Server (slave)
Gateway FunctionModbus/RTU Master to Modbus/TCP, SNMP, RESTful API, MQTT
Operating TemperatureStandard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

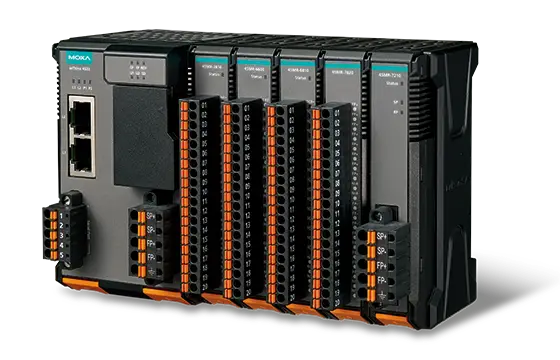

ioThinx 4533 Series Advanced Modular Controller

CPU NXP i.MX7D 1GHz
Power Inputs System Power: 12 to 48 VDC; Field Power: 12/24 VDC
Expansion Modules 64
Operating System Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
Memory 512 MB DDR3
Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage (pre-installed) 8 GB eMMC
Programming Language C/C++, Python

Cloud Connectivity

Save field-site data to the cloud with the built-in Azure/AWS/Alibaba SDK library. In addition, streamline your operations with OPC UA to SCADA capability.

Programming Language

Supports a variety of languages for different programming needs.

Precision Control

Use a real-time OS to achieve control and computing balance in one device by prioritizing APP settings.

System-wide Cybersecurity

Systematic Security Protection to help users mitigate security threats.

Easy Tool-free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

moxa-iothinx-4510-easy-installation-application

Interested in learning more about ioThinx? Get in touch!

Contact us
